CDMA 450 Antenna: FREEDOM CDMA-10 400-470 MHz (15m cable + FME + Anydata ADU 635, 635WA, 500A connector)

Shipment in 0days
Cost from 3.00
  • CDMA 450 Antenna: FREEDOM CDMA-10 400-470 MHz (15m cable + FME+ Anydata ADU 635, 635WA, 500A connector)

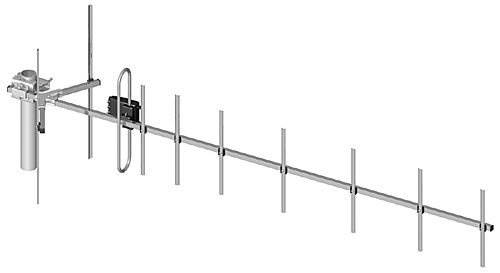

Click on the photo to enlarge it

CDMA 450 Antenna: FREEDOM CDMA-10 400-470 MHz (15m cable + FME + Anydata ADU 635, 635WA, 500A connector)
FULL DESCRIPTION
The basic antenna supplied with a modem is often not suitable for stable operation in some regions (long distance from the base station) and some places (inside buildings). The ATK-10 antenna improves signal strength ensuring proper operation in low-signal environments and stable access to the Internet. The antenna integrates 15 m coaxial cable (50 ohm) with FME connector + Anydata ADU 635, 635WA, 500A connector.
Antenna with built-in balun. Elements screwed down to the carrier.
Simple installation (adding the reflector) takes about one minute.
Specifications
Name

ATK-10

Cable 15 m

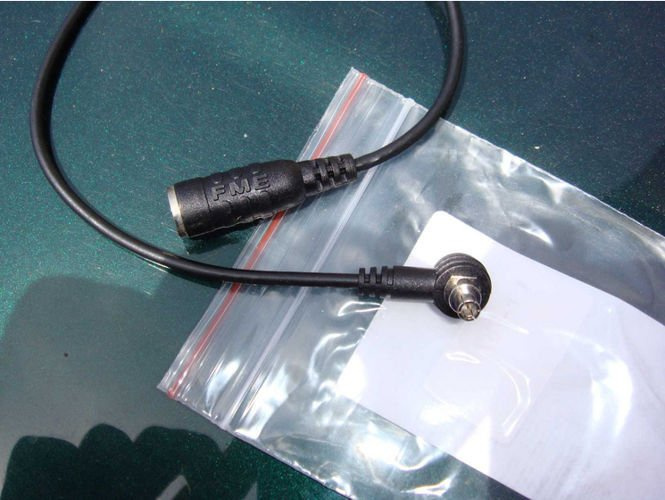

Connector FME female + Anydata ADU 635, 635WA, 500A connector
Band [MHz] 400-470
Gain [dB] 9.5-12
Front/back ratio [dB] 16
Polarization
V
Number of elements 10
Output impedance [Ω] 50
Packaging foil
Weight [kg]

1.40

Length [m] 1.4
Beam width (H) [o] 52-68
Beam width (V) [o] 42-55
Tech specs:
Length [m]
1,40
Cable length [m]
15
Number of elements
10
Impedancy [Ω]
50
Weight [kg]
0,82
Packaging
foil
Band [Mhz]
400-470
Front/back radiation [≥ dB]
16
Polarization
V
Connector type
Anydata ADU 635, 635WA, 500A
Beamwidth V [degrees]
42-55
Beamwidth H [degrees]
52-68
SWR [<]

Standing wave ratio

1,2
Gain [dBi]
9,5-12
